Features:
-
Tolerance:
parallel 0.0003” on two sides, top & bottom.
-
Dimensions:
Within 0.001” allowance.
-
Hardness: Case hardened
to RC55 to 62 on 2 sides top & bottom.
-
The holes are designed for easier
handing and set ups.
-
Made from fine quality tool steel stress
relieved against distortion, precision, ground and hardened.
|
|

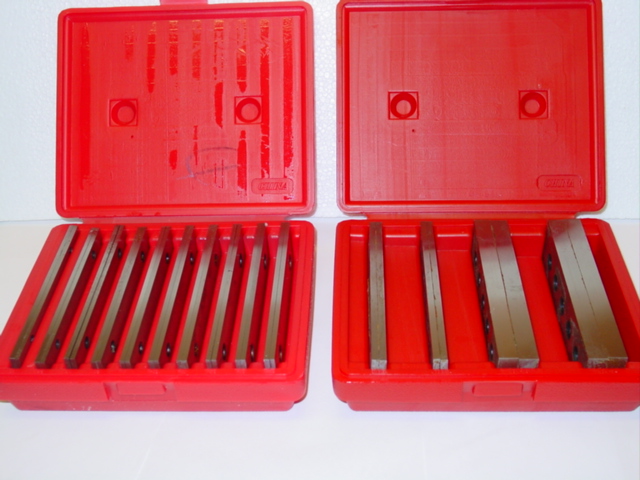

4 Matched Pairs-PAR 001 |
4 Matched Pairs-PAR 002 |
4 Matched Pairs-PAR 004 |
|
3/16” x 1” x 6” |
3/16” x 1” x 6” |
½” x 1” x 6” |
|
3/16” x 1.250” x
6” |
3/16” x 1.250” x
6” |
½” x 1.250” x 6” |
|
½” x 1.500” x 6” |
3/16” x 1.500” x
6” |
½” x 1.500” x 6” |
|
½” x 1.750” x 6” |
3/16” x 1.750” x
6” |
½” x 1.750” x 6” |
|
$66.50 |
$53.90 |
$59.50 |
|
1/8” Thick 10 Pairs-PAR003 |
¼” Thick 9 Pairs-PAR006 |
|
Size |
Hole |
Size |
Hole |
|
1/8” x ½” x 6” |
13/64” |
¼ x ¾ x 6 |
5/16 |
|
1/8” x 5/8” x 6” |
¼” |
¼ x 7/8 x 6 |
5/16 |
|
1/8” x ¾” x 6” |
5/16” |
¼ x 1 x 6 |
5/16 |
|
1/8” x 7/8” x 6” |
5/16” |
¼ x 1-1/8 x 6 |
3/8 |
|
1/8” x 1” x 6” |
5/16” |
¼ x 1-1/4 x 6 |
3/8 |
|
1/8” x 1-1/8” x
6” |
3/8” |
¼ x 1-3/8 x 6 |
7/16 |
|
1/8” x 1-1/4” x
6” |
3/8” |
¼ x 1-1/2 x 6 |
7/16 |
|
1/8” x 1-3/8” x
6” |
7/16” |
¼ x 1-5/8 x 6 |
½ |
|
1/8” x 1-1/2” x
6” |
½” |
¼ x 1-3/4 x 6 |
½ |
|
1/8” x 1-5/8” x
6” |
½” |
|
|
|
List Price |
$69.00 |
List Price |
$103.95 |
|
|
